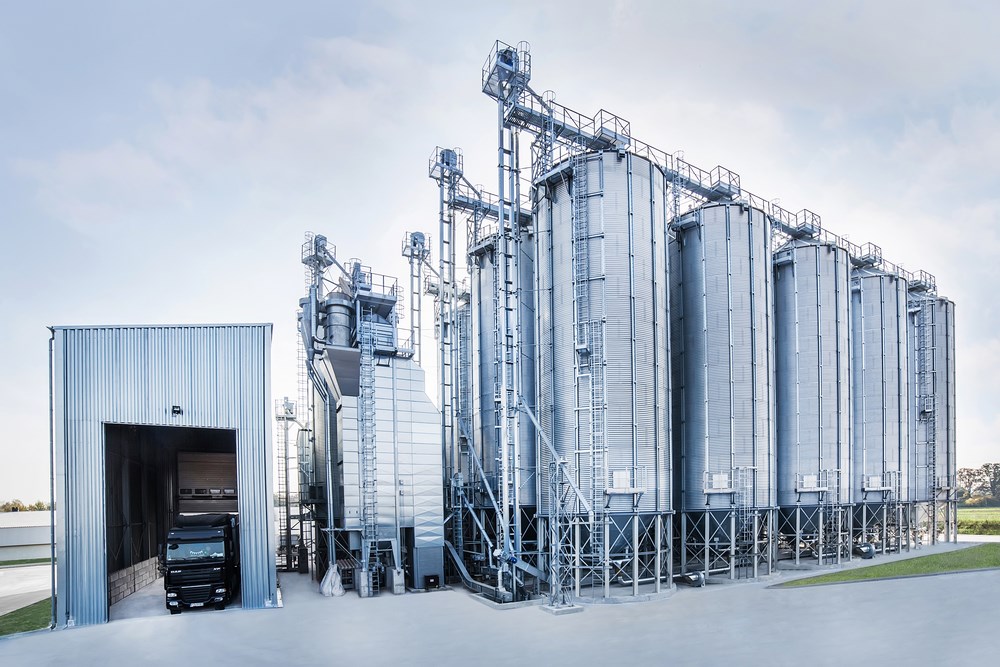

HOPPER FARM SILOS
Hopper silos are designed to store grains, seeds, legumes, pellets and other products that require special storage conditions. The stored product stays off the ground to prevent moisture and lower the possibility of breakage.
This type of silo not only brings economic savings, as no sweeping machine is necessary,but also simplifies the foundation work which considerably reduces the building costs and streamlines assembly work.
Our range of hopper silos covers capacities ranging from 43 m3 to 2,016 m3 with diameters from 3.82 metres to 10.70 metres.
Silos advantages:
- Silos manufactured with galvanised steel S350GD of high elastic tolerance and with Z450 minimum coating equivalent to 450 g/m2 of zinc
- Washers with neoprene to ensure a waterproof seal.
- Galvanised reinforced exteriors, regardless of thickness, that provide excellent anti-corrosion qualities.
- Our method for calculating thickness is more demanding than that established by standard EUROCODE 1.
- 8,8 quality dichromate high tensile bolts in all of our product range.
- A shallower corrugated wave to diminish the adherence of product inside.
- Hot galvanised end support structure.
- Stairs and platforms comply with directive UNE-EN ISO 14122.
Technical details for hopper silos
Support structure
The support structure, which is made up of hot-dip galvanised structural profile columns braced together with laminate profiles, guarantees high silo resistance against external forces.
For easier assembly, the silo is supplied with chemical anchoring elements which may be installed once the silo is completely assembled to prevent problems with the construction work.
Cones / slopes
Cones with slopes of 45º and 60º may be supplied for proper silo unloading and to guarantee cleaning afterwards. Our cones are meticulously designed to this end to prevent any area where material may accumulate and, thus, contaminate the product during later uses.
The silo outlet dimensions vary between Ø270 mm and Ø1200 mm, and may be completed with a wide range of accessories to adjust the outlet dimensions to your needs.
The clearance between the silo unloading and the ground may be 1 or 1.5 m, depending on the requirements for each system. This height may be customised upon request.
Example of dimensions
Diametru 4.8
Model | Capacity [m3] |
Capacity for wheat [t]* |
Total altitude [m] |
SLP 480-4 | 88 | 69 | 8 |
SLP 480-5 | 104 | 81 | 8.9 |
SLP 480-6 | 120 | 94 | 9.8 |
SLP 480-7 | 136 | 106 | 10.7 |
SLP 480-8 | 152 | 119 | 11.6 |
SLP 480-9 | 168 | 131 | 12.5 |
SLP 480-10 | 185 | 144 | 13.4 |
SLP 480-11 | 202 | 158 | 14.3 |
Diameter 5,5
Model | Capacity [m3] |
Capacity for wheat [t]* |
Total altitude [m] |
SLP 550-4 | 120 | 94 | 8.6 |
SLP 550-5 | 141 | 110 | 9.5 |
SLP 550-6 | 162 | 126 | 10.4 |
SLP 550-7 | 184 | 144 | 11.3 |
SLP 550-8 | 206 | 160 | 12.2 |
SLP 550-9 | 227 | 177 | 13.1 |
SLP 550-10 | 248 | 194 | 14.0 |
Diameter 6.5
Model | Capacity [m3] |
Capacity for wheat [t]* |
Total altitude [m] |
SLP 640-7 | 255 | 199 | 12.0 |
SLP 640-8 | 285 | 222 | 12.9 |
SLP 640-9 | 313 | 244 | 13.8 |
SLP 640-10 | 342 | 267 | 14.7 |
SLP 640-11 | 371 | 289 | 15.6 |
SLP 640-12 | 400 | 312 | 16.5 |
SLP 640-13 | 430 | 335 | 17.4 |
SLP 640-14 | 458 | 357 | 18.3 |
SLP 640-15 | 496 | 379 | 19.2 |
SLP 640-16 | 515 | 402 | 20.1 |
Diameter 7,5
Model | Capacity [m3] |
Capacity for wheat [t]* |
Total altitude [m] |
SLP 750-10 | 483 | 377 | 15.6 |
SLP 750-11 | 523 | 408 | 16.5 |
SLP 750-12 | 563 | 439 | 17.4 |
SLP 750-13 | 602 | 470 | 18.3 |
SLP 750-14 | 642 | 500 | 19.2 |
SLP 750-15 | 682 | 532 | 20.1 |
SLP 750-16 | 722 | 563 | 21.0 |
SLP 750-17 | 761 | 594 | 21.9 |
SLP 750-18 | 801 | 625 | 22.8 |
SLP 750-19 | 841 | 656 | 23.7 |
Diameter 9
Model | Capacity [m3] |
Capacity for wheat [t]* |
Total altitude [m] |
SLP 900-14 | 952 | 742 | 20.5 |
SLP 900-15 | 1010 | 788 | 21.4 |
SLP 900-16 | 1066 | 832 | 22.3 |
SLP 900-17 | 1123 | 876 | 23.2 |
SLP 900-18 | 1181 | 922 | 24.1 |
SLP 900-19 | 1238 | 966 | 25,0 |
SLP 900-20 | 1296 | 1010 | 25.9 |
SLP 900-21 | 1352 | 1055 | 26.8 |
